Description

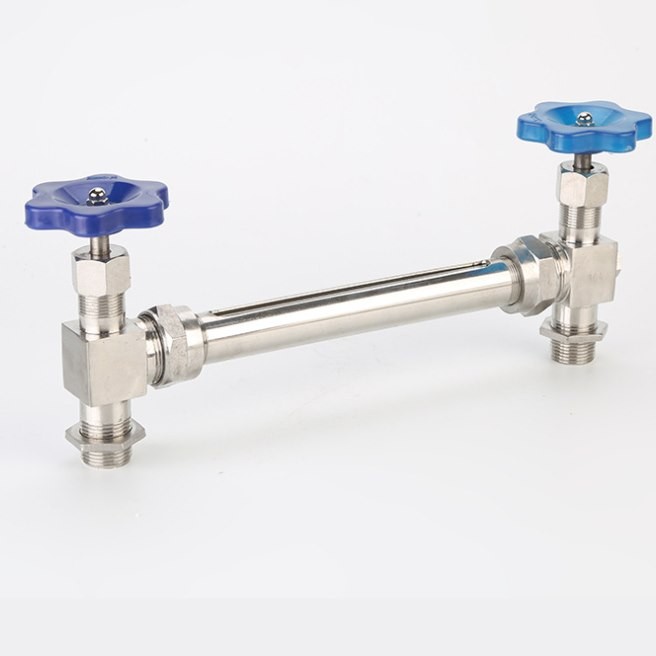

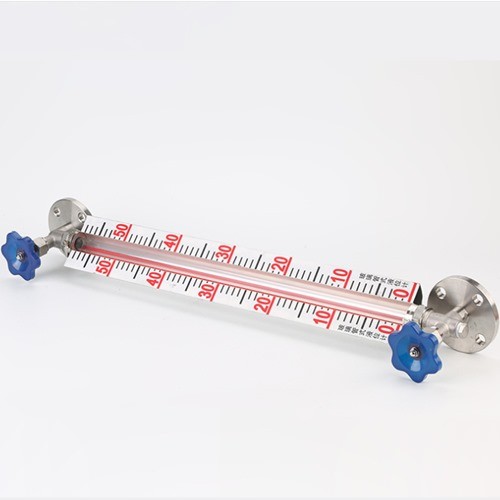

Stainless Steel Glass Tube Liquid Level Gauge

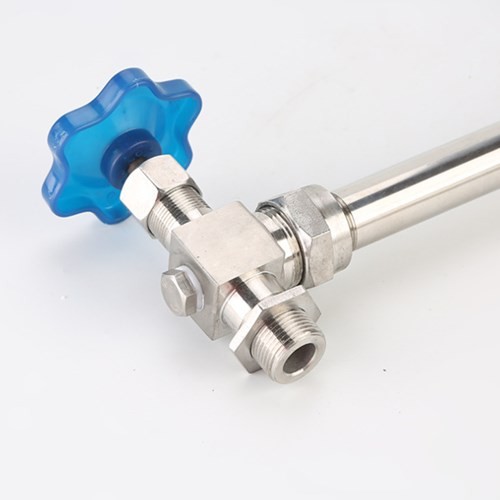

Stainless steel glass tube level gauge is mainly composed of glass tube, protective sleeve, upper and lower valves and
connecting flange (or thread). The level gauge can achieve the function of anti-corrosion or heat preservation by changing
the material of the parts or adding some accessory parts.
The HG5 stainless steel glass tube level gauge is an in-situ liquid level measuring meter. It is mainly used to directly indicate
the height of the medium level in various tanks, towers, tanks, tanks and other containers. The level gauge is designed based
on the principle of a communicating device. , The liquid path formed by the glass tube. The passage is connected to the container
to be tested by a flange or taper pipe thread through a connecting pipe to form a communicating device. The liquid level observed
through the glass tube is the same as the liquid level in the container, that is, the liquid level.
Technical Parameters
Measuring range: 300 to 3000 mm (when it exceeds 3000 mm, it can be manufactured in sections);
Working pressure: limited to normal pressure use, if there is pressure, a quartz glass tube level gauge can be used;
Working temperature: -20～100℃ (common type);-10~80℃ (anti-corrosion type);
Process connection: DN20/25 PN10, if other standards are required, it can be manufactured according to customer requirements.
Wetted materials: carbon steel, stainless steel, PVC, etc. (selected according to the chemical nature of the medium and the temperature and pressure of use).
