Description

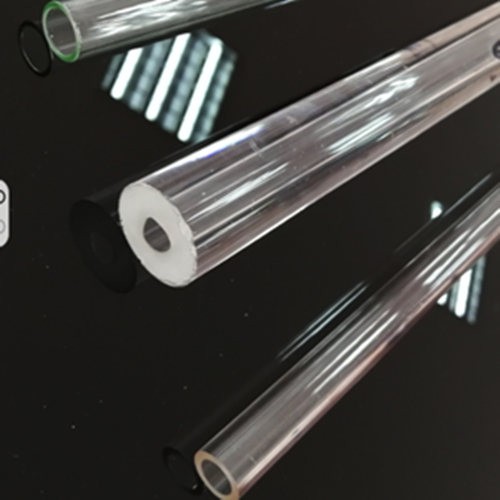

Clear Heavy Wall Borosilicate Quartz Tubular Level Gauge Gage Glass
The glass tube can be divided into three kinds according to material: borosilicate glass tube, soda-lime
glass tube and quartz glass tube. The borosilicate glass tube and quartz glass tube can resist acid and alkali.
And they are also suitable for high pressure and temperature environment. But for soft environment application,
soda-lime glass tube is the most economic choice.
Specification
1.Outer diameter: 3mm-300mm
2.Thickness : 1mm-5.0mm
3.Length : 100mm-2500mm
Material: Standard borosilicate glass 3.3 (we also can provide the quartz )
General Application: Tanks, reservoirs, low pressure boilers.
Ends Finish:may be cut, ground, or fire polished depending on application.
Pressure ratings range:from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
We also can provide the heavy wall for the higher pressure .
