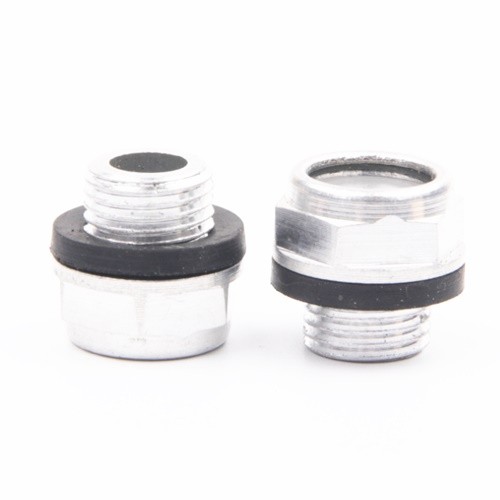

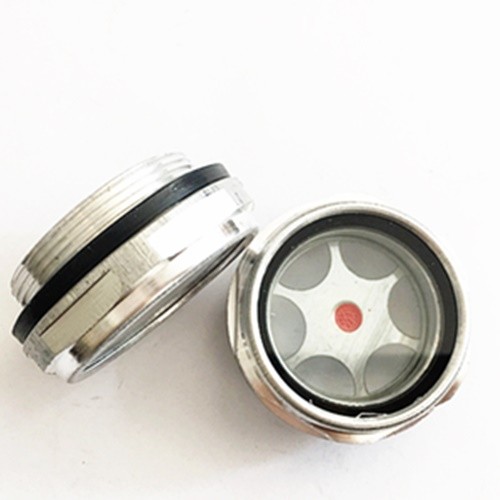

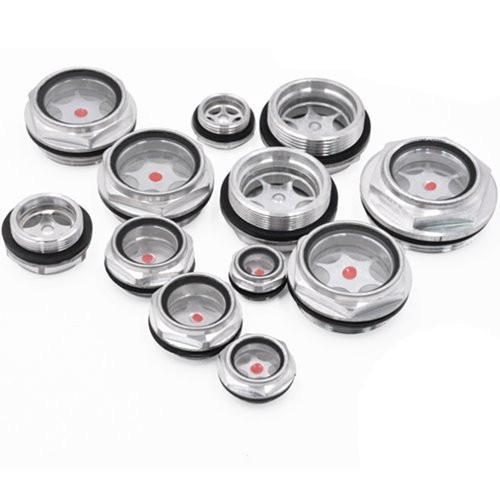

Aluminum Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum,
O-Ring: Viton and NBR
Glass: Tempered Glass & Transparent Polycarbonate
Pressure: Max 25 bar
Working Temperature: -20-180℃
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|

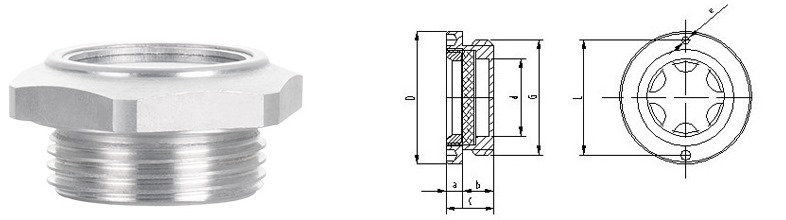

ITEM |
SIZE |
D |
d |
L |
f |
h |
s |
|
WO-OSG-04-A01 |
M10*1 |
16 |
5 |
15 |
3 |
8 |
13 |
|
WO-OSG-04-A02 |
M12*1.25 |
18 |
6.5 |
16 |
3 |
8 |
15 |
|
WO-OSG-04-A03 |
M14*1.5 |
20 |
8 |
18 |
4 |
9 |
17 |
|
WO-OSG-04-A04 |
G 1/4’’ |
20 |
8 |
18 |
4 |
9 |
17 |
|
WO-OSG-04-A05 |
M16*1.5 |
22 |
10 |
18 |
4 |
9 |
19 |
|
WO-OSG-04-A06 |
G3/8’’ |
22 |
10 |
18 |
4 |
9 |
19 |
|
WO-OSG-04-A07 |
M18*1.5 |
25 |
11.5 |
18 |
4 |
9 |
21 |
|
WO-OSG-04-A08 |
M20*1.5 |
27 |
12.5 |
18 |
4 |
9 |
23 |
|
WO-OSG-04-A09 |
G 1/2’’ |
28 |
13.5 |
22 |
4 |
12 |
23 |
|
WO-OSG-04-A10 |
M22*1.5 |
28 |
13.5 |
18 |
4 |
9 |
23 |
|
WO-OSG-04-A11 |
M27*1.5 |
32 |
20 |
18 |
4 |
9 |
26 |
|
WO-OSG-04-A12 |
G 3/4’’ |
32 |
20 |
22 |
4 |
12 |
26 |
|
WO-OSG-04-A13 |
M33*2 |
40 |
23.5 |
24 |
4 |
13 |
34 |
|
WO-OSG-04-A14 |
G 1’’ |
40 |
23.5 |
24 |
4 |
13 |
34 |
|
WO-OSG-04-A15 |
M42*2 |
50 |
30 |
24 |
11 |
13 |
/ |
|
WO-OSG-04-A16 |
G 1 1/4’’ |
50 |
30 |
24 |
11 |
13 |
/ |
