Description

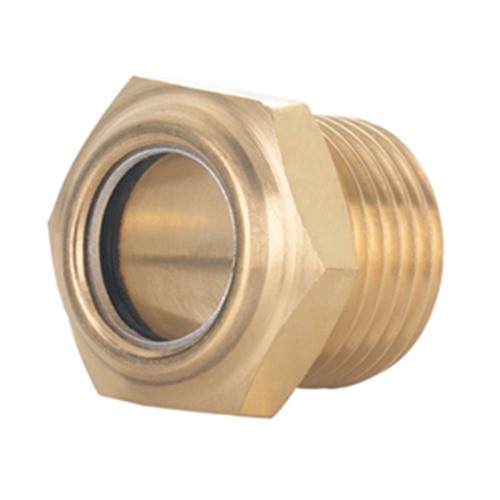

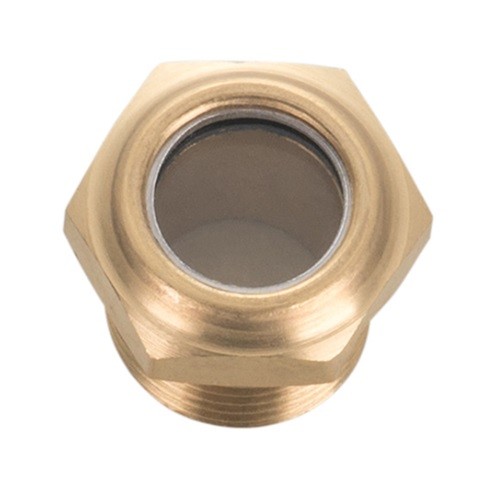

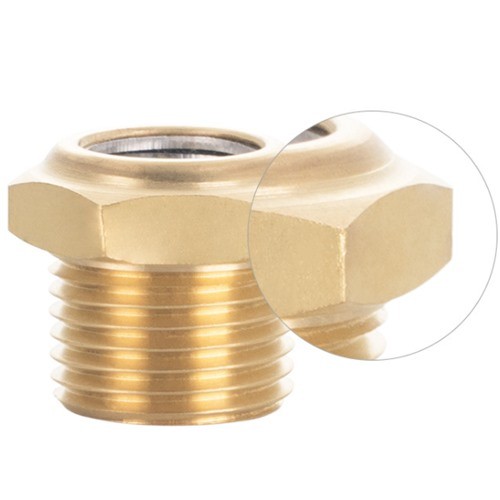

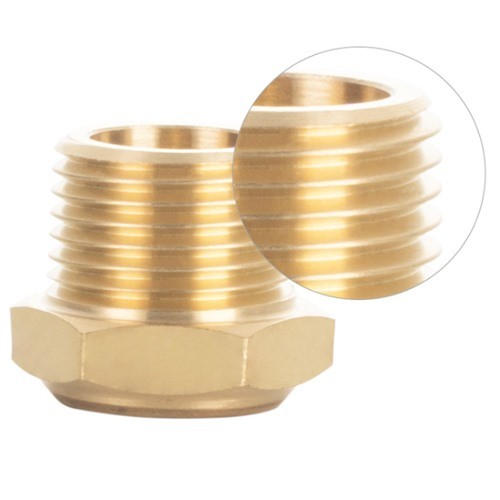

Round Long Thread Brass Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Brass
O-Ring: Viton and NBR
Glass: Tempered Glass
Glass Thickness: 2mm to 5 mm
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|

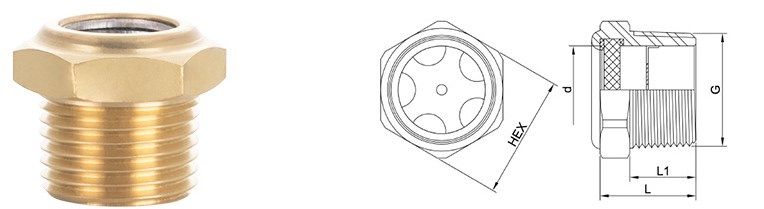

ITEM |
G |
HEX |
L |
L1 |
d |
|
WO-OSG-05-G01 |
G3/8’’ |
22 |
12.5 |
7.5 |
12 |
|
WO-OSG-05-G02 |
G1/2’’ |
27 |
18 |
10 |
14.3 |
|
WO-OSG-05-G03 |
G3/4’’ |
32 |
22 |
15 |
18 |
|
WO-OSG-05-G04 |
G1’’ |
38 |
26 |
18 |
25 |
|
WO-OSG-05-G05 |
G1 1/4’’ |
44 |
31 |
20 |
30 |
|
WO-OSG-05-G06 |
G1 1/2’’ |
55 |
32 |
22 |
36.5 |
|
WO-OSG-05-G07 |
G2’’ |
65 |
35 |
25 |
44.5 |
|
|
|||||
|
WO-OSG-05-N01 |
NPT1/2’’ |
24 |
20 |
14 |
14 |
|
WO-OSG-05-N02 |
NPT3/4’ |
27 |
24 |
17 |
18 |
|
WO-OSG-05-N03 |
NPT1’’ |
36 |
27 |
19 |
24 |
|
WO-OSG-05-N04 |
NPT1 1/4’’ |
45 |
31 |
21 |
30 |
|
WO-OSG-05-N05 |
NPT1 1/2’’ |
50 |
31 |
21 |
36.5 |
|
WO-OSG-05-N06 |
NPT2’’ |
64 |
33 |
23 |
44.5 |
|
|
|||||
|
WO-OSG-05-M01 |
M16*1.5 |
22 |
12.5 |
7.5 |
12 |
|
WO-OSG-05-M02 |
M18*1.5 |
22 |
12.5 |
7.5 |
14 |
|
WO-OSG-05-M03 |
M22*1.5 |
27 |
18 |
10 |
14.3 |
|
WO-OSG-05-M04 |
M24*1.5 |
32 |
17 |
11 |
18 |
|
WO-OSG-05-M05 |
M27*1.5 |
36 |
20 |
12 |
23 |
|
WO-OSG-05-M06 |
M30*1.5 |
36 |
20 |
12 |
23 |
|
WO-OSG-05-M07 |
M33*1.5 |
45 |
23 |
15 |
23 |
