Description

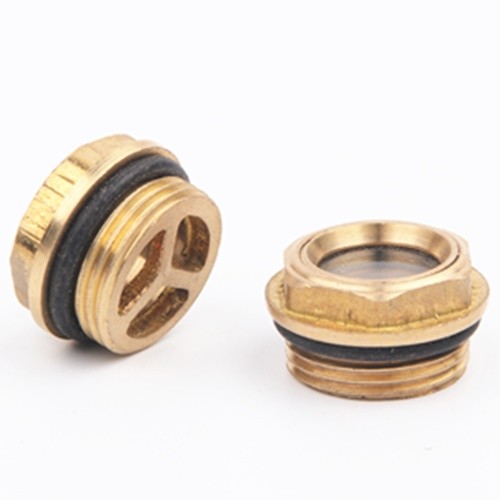

Brass Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass: Tempered Glass
Glass Thickness: 2mm to 5 mm
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|
ITEM |
G |
D |
d |
L |
L2 |
L1 |
HEX |
|
WO-OSG-03-M01 |
M10 |
/ |
6 |
14 |
/ |
7 |
17 |
|
WO-OSG-03-M02 |
M12 |
/ |
7 |
15 |
/ |
8 |
17 |
|
WO-OSG-03-M03 |
M16 |
21 |
10 |
16 |
2 |
8 |
17 |
|
WO-OSG-03-M04 |
M20 |
26 |
14 |
17 |
2.6 |
8 |
21 |
|
WO-OSG-03-M05 |
M22 |
26 |
14 |
17 |
2.6 |
8 |
21 |
|
WO-OSG-03-M06 |
M27 |
32 |
16 |
18.5 |
3 |
8 |
24 |
|
WO-OSG-03-M07 |
M33 |
39 |
24 |
19 |
3 |
10 |
32 |
|
|
|||||||
|
ITEM |
G |
D |
d |
L |
L2 |
L1 |
HEX |
|
WO-OSG-03-G01 |
G1/4’’ |
/ |
7 |
15 |
/ |
8 |
2.6 |
|
WO-OSG-03-G02 |
G3/8’’ |
21 |
10 |
16 |
2 |
8 |
2.6 |
|
WO-OSG-03-G03 |
G1/2’’ |
26 |
14 |
17 |
2.6 |
8 |
2.6 |
|
WO-OSG-03-G04 |
G3/4’’ |
32 |
16 |
18.5 |
3 |
9 |
2.6 |
|
WO-OSG-03-G05 |
G1’’ |
39 |
24 |
19 |
3 |
10 |
3.2 |
