Description

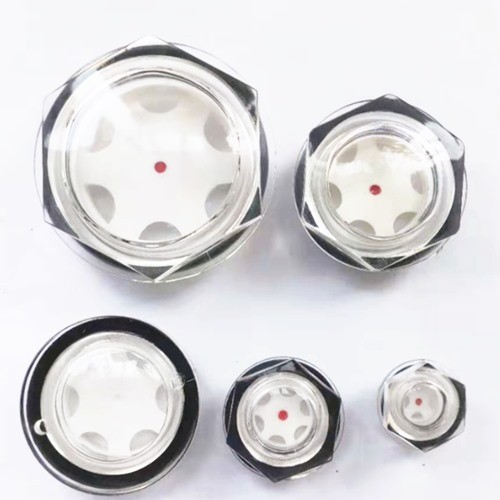

Plastic Oil Level Sight Glass
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Plastic PMMA
O-Ring: NBR
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|

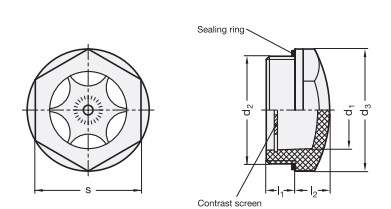

ITEM |
G |
d1 |
d3 |
l1 |
l2 |
s |
|
WO-OSG-11-G01 |
G1/4’’ |
9 |
18 |
10 |
6 |
15 |
|
WO-OSG-11-G02 |
G3/8’’ |
11 |
22 |
10 |
7 |
19 |
|
WO-OSG-11-G03 |
G1/2’’ |
14 |
26 |
10 |
8 |
22 |
|
WO-OSG-11-G04 |
G3/4’’ |
20 |
31 |
10 |
10 |
27 |
|
WO-OSG-11-G05 |
G1’’ |
25 |
40 |
11 |
10 |
34 |
|
WO-OSG-11-G06 |
G1 1/4’’ |
30 |
47 |
12 |
13 |
41 |
|
|
|
|
|
|
|
|
|
ITEM |
G |
d1 |
d3 |
l1 |
l2 |
s |
|
WO-OSG-11-M01 |
M16 |
11 |
22 |
7 |
7 |
19 |
|
WO-OSG-11-M02 |
M20 |
14 |
26 |
8 |
8 |
22 |
|
WO-OSG-11-M03 |
M25 |
18 |
31 |
10 |
10 |
27 |
|
WO-OSG-11-M04 |
M26 |
19 |
31 |
9 |
9 |
27 |
|
WO-OSG-11-M05 |
M27 |
20 |
31 |
10 |
10 |
27 |
|
WO-OSG-11-M06 |
M30 |
22 |
35 |
10 |
10 |
30 |
|
WO-OSG-11-M07 |
M35 |
25 |
40 |
10 |
10 |
34 |
|
WO-OSG-11-M08 |
M40 |
30 |
47 |
13 |
13 |
47 |
