Description

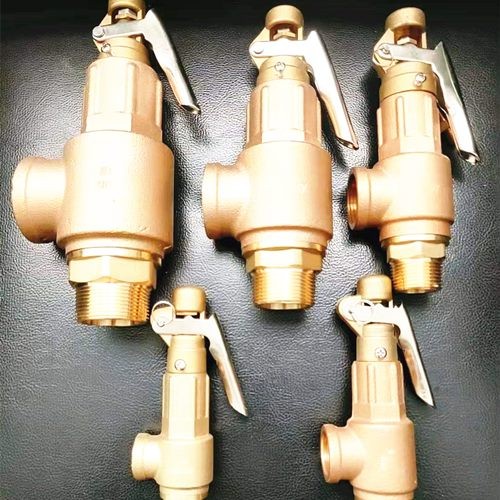

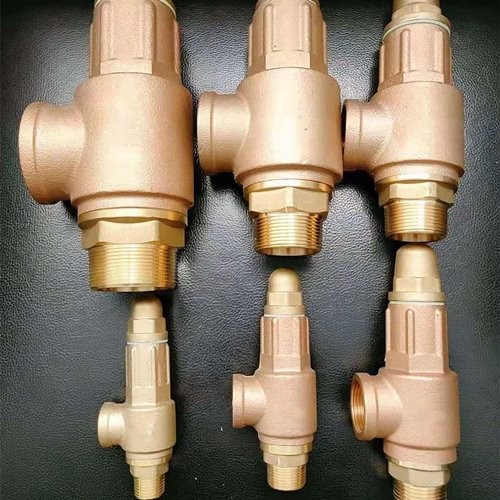

S10L S10 Bronze Boiler Relief Safety Valve
SS brand safety valve is mainly used in occasions where the temperature exceeds 110℃ and the starting pressure often
changes, such as mold temperature controllers, heating equipment, heat exchange stations and boilers. The starting
pressure can be adjusted at any time from 0.1 to 40 bar, and it can withstand high temperatures. 225°C, widely used in
non-corrosive media such as steam, water, gas, etc., with a large supply of DN15-DN50 at a preferential price.
Available size :1/2'' ,3/4'', 1'' ,1 1/4'' ,1 1/2'' , 2''
S10 sealed adjustable safety valve technical parameters of safety valve:
Maximum working pressure: 40bar Maximum working temperature: 225℃ Take-off pressure: 0.3-10KG
S10 sealed safety valve mold temperature controller safety valve structure:
Body: Bronze Bonnet: Brass Spring: Carbon Steel Sealing Material: Brass Form: Sealed
-----------------------------------------------------------------------------------------------------------------------------------------------------------------

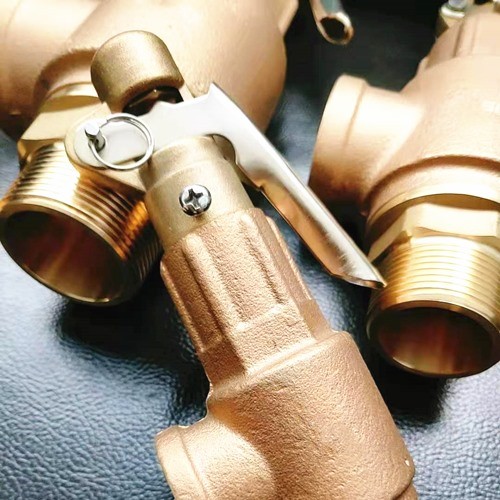

S10L handle-type adjustable safety valve technical parameters of safety valve:
Maximum working pressure: 40bar Maximum working temperature: 225 ℃ Take-off pressure: 0.3--25bar
S10L handle type safety valve mold temperature controller safety valve structure:
Body: Bronze Bonnet: Brass Spring: Carbon Steel Sealing Material: Brass Form: Handle
Maximum working pressure: 40bar Maximum working temperature: 225 ℃ Take-off pressure: 0.3--25bar
S10L handle type safety valve mold temperature controller safety valve structure:
Body: Bronze Bonnet: Brass Spring: Carbon Steel Sealing Material: Brass Form: Handle
|
|
