Description

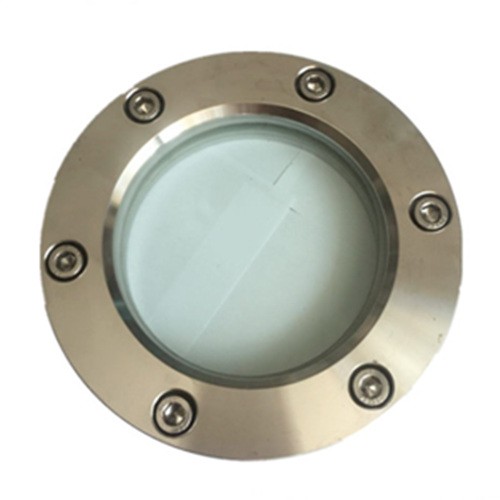

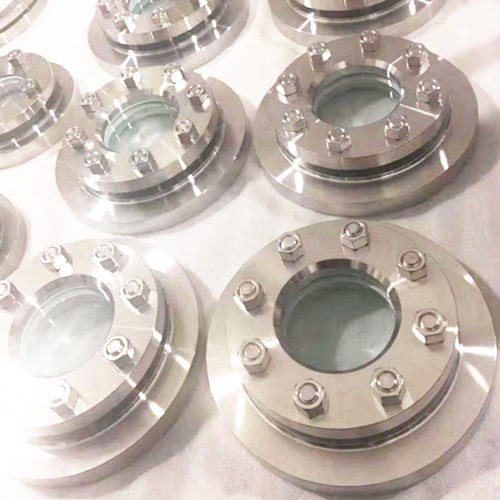

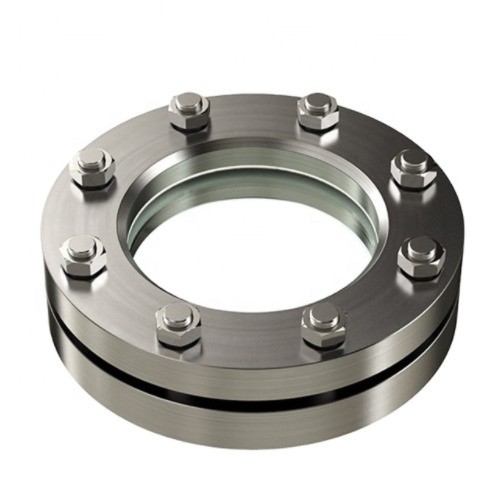

Welded Circular Flange Sight Glass To DIN28120
PN 16 For welding, according to DIN 28120
Application: Observation and illumination of the interior of enclosed vessels (cauldrons, tanks, silos etc.).
Sight glasses consist of round flange mountings to be welded into or onto a vessel, completed by a sight glass plate
with appropriate seals.
Operating conditions Pressure:
--10 bar or 16 bar, depending on size, higher pressure rating on request).
--Vacuum
Operating temperature
max. 280°C – Borosilicate glass DIN7080
max. 150°C – Sodalime glass DIN8902
max. 800°C – fused quartz glass
| Product Name: | DIN28120 sanitary flange sight glass |
| Material: | SS304 or SS316L or CS |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 1"-4" or DN25-DN100 DN120 DN150 DN200 |
| Connection Way: | Flange |
| Seal Material: | Silicone, EPDM, Viton, NBR |
