Description

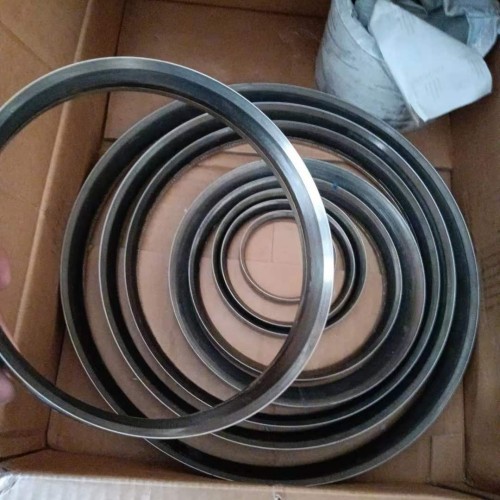

Compressed sealing rings made from various grades of expanded graphite with or without anti-extrusion stainless steel cups. Easy to remove (non-stick), LATTYgraf BA autoclave rings seal tight on uneven surfaces. Suitable for low-pressure applications, no damage is done to the valve housing. Various profiles. Available in diameters from 60 mm (NP 250 bar) to 1,000 mm (NP 160 bar). Easy to remove, non-stick, seal-tight on uneven surfaces, suitable for low-pressure applications, compatible with valve components.
Die formed graphite ring are made of expanded graphite without any filler or binders. No special corrosion protection is required. In general, it has square section and has V shaped and wedge shaped section.
WINOCEAN die formed ring are made of low-sulphur expanded graphite without any filler and binders. They are compressed in precise moulding tools to the required density. Due to the high purity of the material, no special corrosion protection is required. In general, it has square section and V-Shaped and Wedge-shaped section.
GASKET
FUNCTION:VALVE
DESIGN/CONSTRUCTION:BODY BONNET
FORM/STYLE/SHAPE:ROUND
SIZE:115 MM ID X 125 MM OD X 5 MM TH
PRESSURE RATING:2500 LBS
MATERIAL:PURE GRAPHITE
STANDARD/SPECIFICATION:DIN 28091-4
ITEM ADDITIONAL DESCRIPTION: KKS # LAE70AA002, 345TA0160100J8D0,FOR GLOBE VALVE, DN 6 INCH, CLASS 2500, FIGURE 6024
