Description

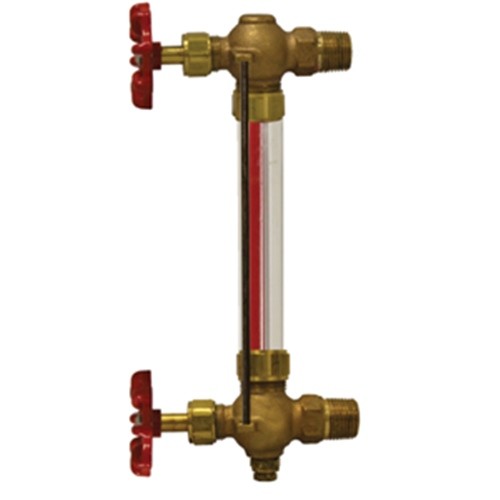

Brass Gauge Valve With Tubular Glass Tube and Automatic Ball Checks
It is for the For low pressure water vessels, storage tanks, containers .Brass Valves are suitable for working
pressures up to 200 psig at or under 400ºF.Tubular glasses are available in any length ,
Brass Gauge Cock Size :
Connection Thread with vessel : 1/2'' or 3/4'' BSP / NPT
Borosilicate glass tube: 5/8" (16 mm) O.D.
length as your requirment .
Wall thickness refer to the working pressure ( 2mm 2.5mm 3mm 4mm )
Standards Gauge Valve Set :
