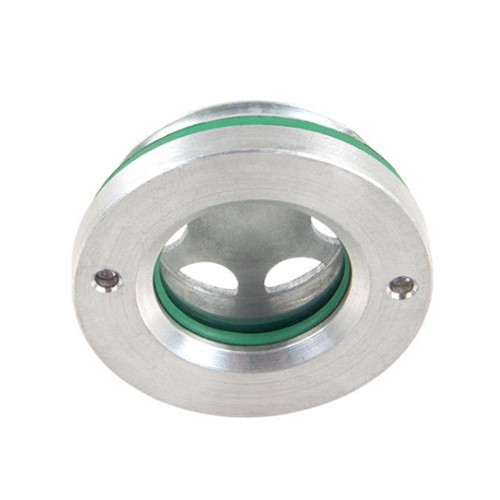

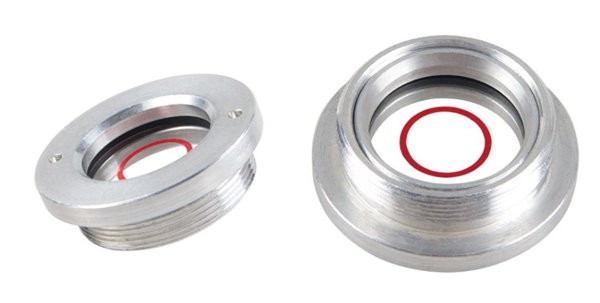

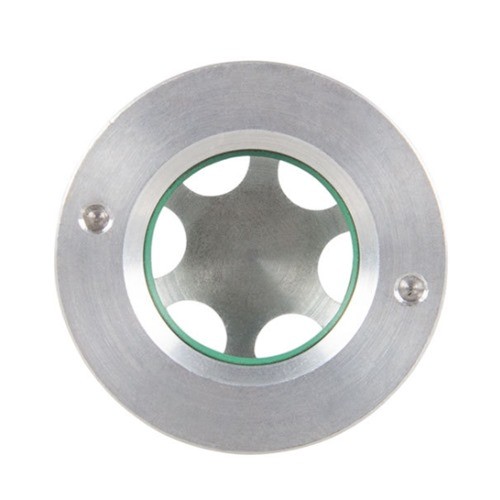

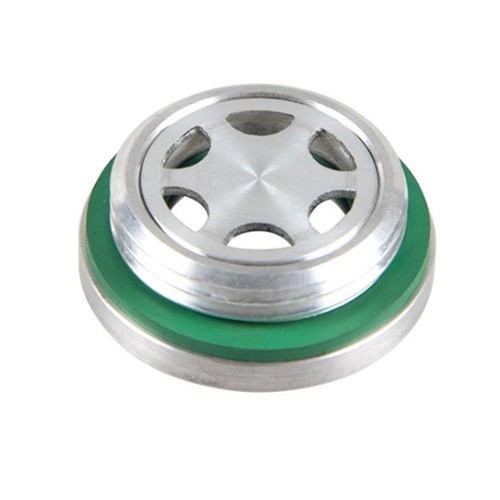

Round Brass Oil Level Sight Glass Window
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum
O-Ring: Viton and NBR
Glass: Tempered Glass
Size：
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,M60X2
G 3/8'',G 1/2'',G 3/4'',G 1'' ,G1 1/4'' ,G1 1/2''
NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.
|

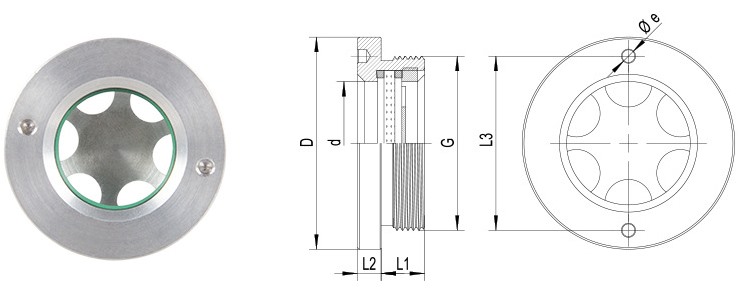

ITEM |
G |
D |
d1 |
L3 |
L2 |
L1 |
e |
|
WO-OSG-04-M01 |
M16 |
22 |
9.1 |
18 |
4 |
8 |
2.6 |
|
WO-OSG-04-M02 |
M20 |
26 |
11.6 |
21.5 |
4 |
8 |
2.6 |
|
WO-OSG-04-M03 |
M27 |
32 |
16.1 |
27 |
4 |
8 |
2.6 |
|
WO-OSG-04-M04 |
M30 |
36 |
20.1 |
30.5 |
4.5 |
8 |
2.6 |
|
WO-OSG-04-M05 |
M33 |
38 |
22.1 |
33 |
4.5 |
9 |
2.6 |
|
WO-OSG-04-M06 |
M36 |
42 |
25.1 |
35.5 |
4.5 |
9 |
2.6 |
|
WO-OSG-04-M07 |
M42 |
48 |
28.1 |
40 |
4.5 |
10 |
3.2 |
|
WO-OSG-04-M08 |
M48 |
55 |
33.1 |
47.5 |
5 |
11 |
3.2 |
|
WO-OSG-04-M09 |
M60 |
68 |
43.1 |
60 |
5.5 |
11 |
4.5 |
|
|
|||||||
|
ITEM |
G |
D |
d1 |
L3 |
L2 |
L1 |
e |
|
WO-OSG-04-G01 |
G3/8’’ |
22 |
9.1 |
18 |
4 |
8 |
2.6 |
|
WO-OSG-04-G02 |
G1/2’’ |
26 |
11.6 |
21.5 |
4 |
8 |
2.6 |
|
WO-OSG-04-G03 |
G3/4’’ |
32 |
16.1 |
27 |
4 |
8 |
2.6 |
|
WO-OSG-04-G04 |
G1’’ |
38 |
22.1 |
33 |
4.5 |
9 |
2.6 |
|
WO-OSG-04-G05 |
G1 1/4’’ |
48 |
28.1 |
40 |
4.5 |
10 |
3.2 |
|
WO-OSG-04-G06 |
G1 1/2’’ |
55 |
33.1 |
47.5 |
5 |
11 |
3.2 |
|
WO-OSG-04-G07 |
G2’’ |
68 |
43.1 |
60 |
5.5 |
11 |
4.5 |
