Description

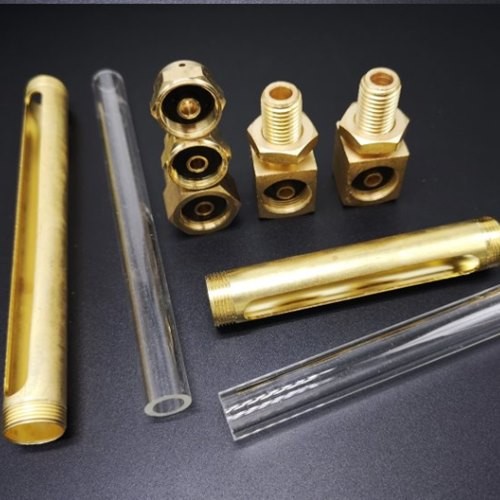

Brass L Type Oil Level Window Indicator DIN3018
Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Brass
O-Ring: Viton and NBR
Glass: Tempered Glass
Glass tube temperature resistance from high temperature 300° to low temperature minus 40°
The thread specifications are:
L type: M10*1.5, M12*1.5, 1/4'', M16*1.5, 3/8''
Straight pipe: M12*1.5, 1/4'', M16*1.5, 3/8'', 1/2''
Height : 70mm 80mm 100mm 125mm 150mm 200mm
